EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26

Brand Name : EDL

Model Number : 9510-26

Certification : ISO9001, ISO14001, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30,000pcs/day

Delivery Time : 3-15days

Packaging Details : Carton

Wheel Diameter : 10inch(250mm)

Dynamic Load : 5000kg

Tread Material : MC

Mounting Height : 360mm

Frame Material : Hot-Rolled Plate

Surface Treatment : Zinc Coating

Plate Thickness : 20mm

Bracket Thickness : 16mm

Bracket Width : 2-91mm

Wheel width : 80mm

Bearing : Double ball bearings

Tread Color : White

Applicable Temperature : -30℃~80℃

Tread Hardness : 95A

Contact Now

EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26

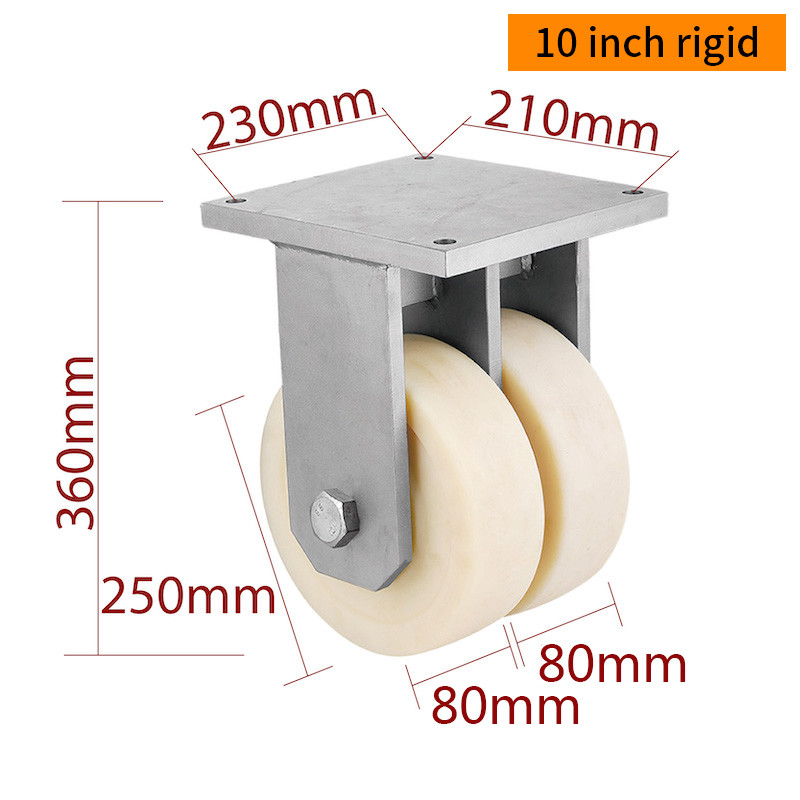

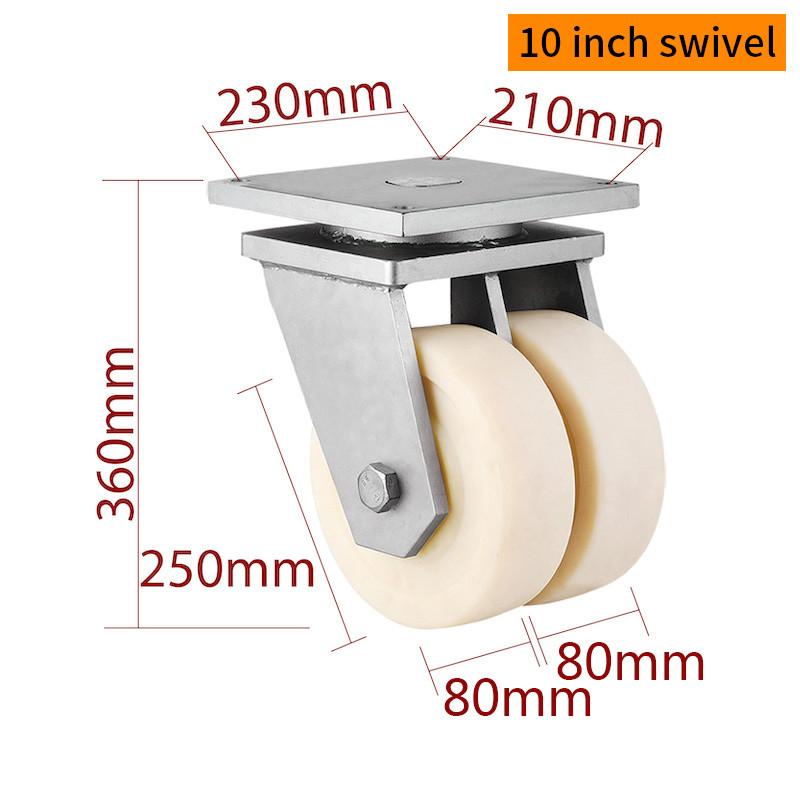

The EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster (9510-26) is built for the toughest industrial applications. Each caster supports up to 5000kg, making it ideal for extremely heavy machinery, mold trolleys, and oversized transport platforms.The dual-wheel design uses MC Nylon, a high-performance engineering plastic known for exceptional wear resistance, low rolling resistance, and long-term durability under high loads. This ensures smooth operation even in high-frequency or high-impact environments.A 20mm thick top mounting plate and 16mm thick steel bracket provide outstanding structural strength and impact resistance. Available in rigid and swivel types, this caster adapts to different movement control requirements.Perfect for aerospace platforms, automated production lines, steel processing, and industrial logistics, the 9510-26 delivers unmatched performance where strength and reliability are critical. Backed by EDL’s engineering excellence, it is a professional solution for extreme-duty mobility challenges.


Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core Tread Bearing

Applicable

Temperature

Hardness
9510-26 10" 250mm 80mm 2-91mm 5000Kg /

MC

Double ball

bearing 6206

-20℃~120 67D


EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26

EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26

EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26
